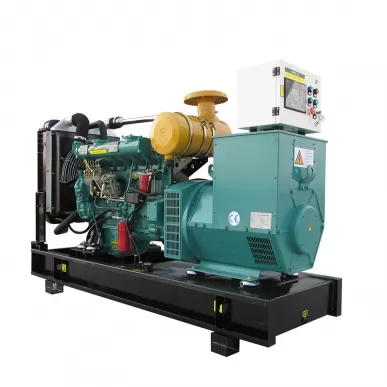

250kw / 312.5kva Diesel Generator Set

Inquire Now

INTRODUCTION

GensetGenset ModelPLD-240GFPLD-250GF
Rated Power (kW/kVA)240/300250/312.5
Standby Power (kW/kVA)264/330275/343.8
Rated Current (A)432450
ManufacturerPulita Energy
Diesel EngineMain Engine-Body MakePerkinsCummins
Diesel Engine Model1506A-E88TAG56LTAA9.5-G1
Rated Power (kW)293290
TypeFour Stroke, Water Cooling, Direct injection, 24V DC Starting
Displacement (L)8.89.5
Bore× Stock (mm)117*146116.5*148
Air Intake WayTurbo-chargingTurbo-charging
Rated Speed (r/min)1500/1800 (50/60Hz)
Fuel consumption(L/Kw·h)0.21
AlternatorBrand/ModelFaraday
FD4M -4FD4M -4
Frequency (Hz)50/60
Excitation MethodSelf-excited, Brushless, AVR
Phase/Connection3 Phase 4 Wire, Y-connection, 0.8 Power Factor (Cosφ)
Protection Level/Insulation ClassIP23/H
Control SystemThe standard control panel is with functions including manual keys, alarms, protections, auto start and shut down, showing running parameters in LCD Display by DEIF SGC420 Controller.
OptionsSpecial requirements for Container, ATS, Synchronizing Parallel panels are available for options.
Dimension (for Open Genset, mm)2650*1000*18002650*1000*1800
Weight (KG)19801980
