INTRODUCTION

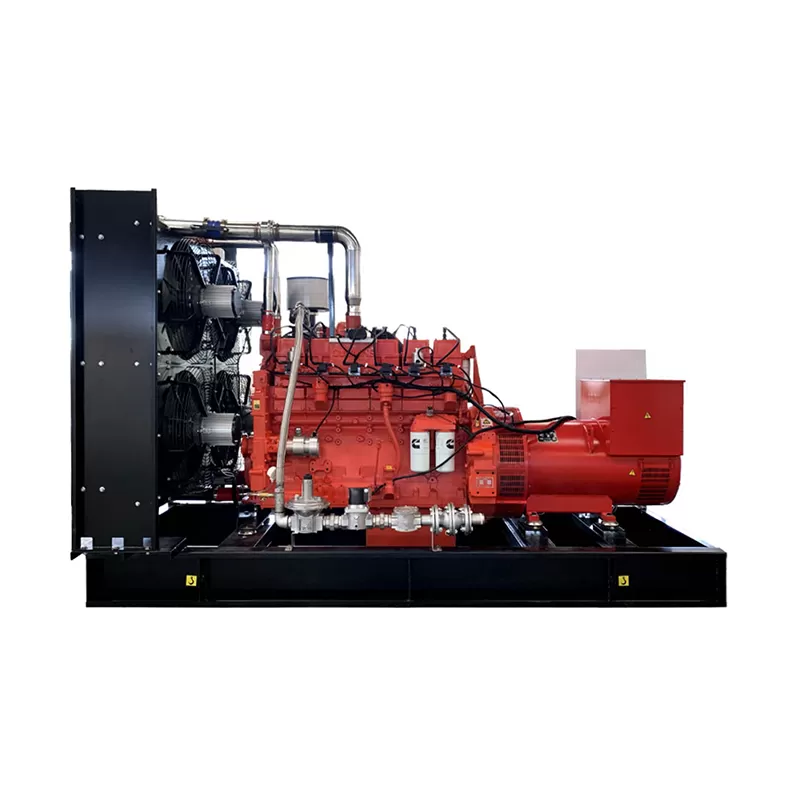

| Genset | Genset Model | PLC-300GF | PLS-250GF |
| Rated Power (kW/kVA) | 300/375 | 300/375 | |
| Standby Power (kW/kVA) | 330/413 | 330/413 | |
| Rated Current (A) | 540 | 540 | |
| Manufacturer | Pulita Energy | ||
| Gas Engine | Main Engine-Body Make | Cummins | Sinotruk |
| Gas Engine Model | PCTA19L-NG | MT13.15-330 | |
| Rated Power (kW) | 340 | 330 | |
| Type | Four Stroke, Water Cooling, Spare Ignition, 24V DC Starting | ||
| Displacement (L) | 19 | 12.419 | |
| Bore× Stock (mm) | 159*159 | 126*166 | |
| Air Intake Way | Turbocharged | Turbocharged | |
| Rated Speed (r/min) | 1500/1800 (50/60Hz) | ||
| Fuel consumption(m³/Kw·h) | 0.3 | ||
| Alternator | Brand/Model | Faraday | Faraday |
| FD4L-4 | FD4L-4 | ||
| Frequency (Hz) | 50/60 | ||
| Excitation Method | Self-excited, Brushless, AVR | ||
| Phase/Connection | 3 Phase 4 Wire, Y-connection, 0.8 Power Factor (Cosφ) | ||
| Protection Level/Insulation Class | IP23/H | ||
| Control System | The standard control panel is with functions including manual keys, alarms, protections, auto start and shut down, showing running parameters in LCD Display by DEIF SGC420 Controller. | ||
| Options | Special requirements for Container, ATS, Synchronizing Parallel panels and CHP are available for options. | ||
| Dimension (for Open Genset, mm) | 3850*1230*2170 | 3500*1240*1900 | |
| Weight (KG) | 3300 | 3400 | |
